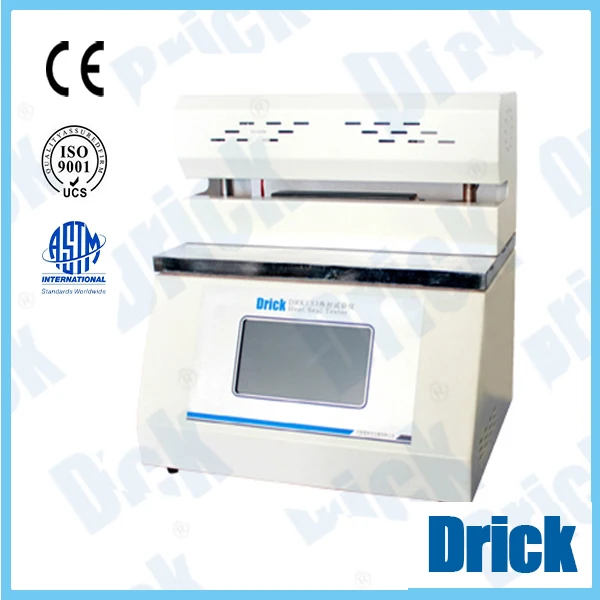

featured product Polyethylene film heat sealing strength tester

FOB Reference Price:Get Latest Price
US $2,000-5,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
Qingdao or as your request
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DRICK
Model Number:
DRK133
Power:
Electronic, AC 220V 50Hz
Usage:
Plastic Testing Machine
Dwell Time:
0.1~999.9s
Dwell Pressure:
0.05 MPa~0.7 MPa
Heat Type:
Double heat surface
Gas Source Pressure:
0.5 MPa~0.7 MPa(Users prepare gas source themselves)
Gas Source Inlet:
6 mm polyurethane pipe
Packaging & Delivery
Packaging Details
Veneer case with plastic film wrapped or as per your request
Delivery Time
Within Two Weeks

Product Introduction

DRK133    Polyethylene film heat sealing strength tester  seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. The seal parameters include heat seal temperature, dwell time, and the pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness, and thickness of could show various heat seal properties, which cause obviously different seal technique. Users can obtain standard and accurate heat seal index by DRK133 Heat Seal Tester.



Product features

Micro-computer control; LCD display;

Manu interface, PVC operation board;

P.I.D digital temperature control system:

Underlying double cylinder simultaneous loop;

Two test start mode of manual and foot pedal;

Independent temperature control of the upper and lower heat seal head;

Various heat seal surfaces made to order;

Encapsulate even-temperature heating pipe by aluminum;

Rapid insertion and separation heating pipe plug;

Anti-scald design;

RS232 port;



Product Application

It is applicable to determine the seal parameters of plastic film, laminated film, paper-plastic composite film, co-extruded film, aluminum laminated films, aluminum foil, aluminum foil composite membrane, etc. The heat-seal surface is flat. Heat seal width can be designed and customized specially according to customer requirements. It also can test different plastic flexible tube.



Technical standard

ASTM F2029, QB/T 2358(ZBY 28004)YBB 00122003



Product parameter

Items

Parameter

Seal Temperature

Room temperature ~ 300ºC

Temperature Control Accuracy

±0.2ºC

Dwell Time

0.1~999.9s

Dwell Pressure

0.05 MPa~0.7 MPa

Seal Surface

180 mm×10 mm(Customization is available)

Heat Type

Double heat surface

Gas Source Pressure

0.5 MPa~0.7 MPa(Users prepare gas source themselves)

Gas Source Inlet

6 mm polyurethane pipe

Dimensions

400 mm (L)×280 mm (W)×380 mm (H)

Power

AC 220V 50Hz

Net Weight

40 kg





Main fixtures

Standard: Mainframe, operating manual
