Hot Tack Tester / Heat Seal Tester

FOB Reference Price:Get Latest Price
US $10-4,800 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DRICK
Model Number:
DRK133
Power:
Electronic, AC 220V 50Hz
Usage:
Heat Seal Tester
Seal Temperature:
Room temperature~300
Temperature Control Accuracy:
±0.2
Dwell Time:
0.1~999.9s
Dwell Pressure:
0.05 MPa~0.7 MPa
Seal Surface:
180 mm*10 mm(Customization is available)
Heat Type:
Double heat surface
Gas Source Pressure:
0.5 MPa~0.7 MPa(Users prepare gas source themselves)
Gas Source Inlet:
6 mm polyurethane pipe
Dimensions:
400 mm (L)*280 mm (W)*380 mm (H)
Packaging & Delivery

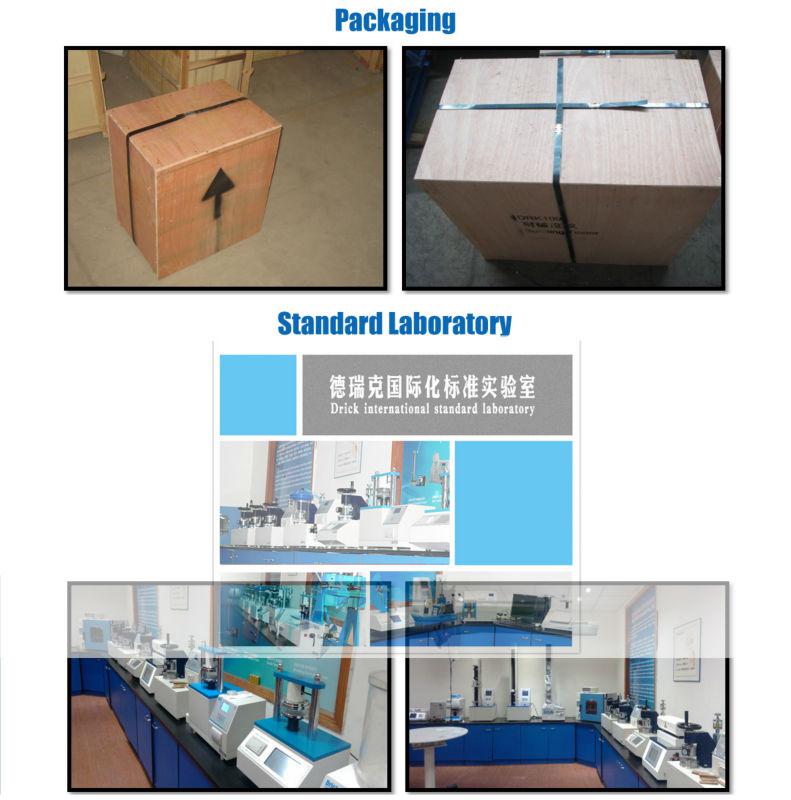

Packaging Details
Veneer Case
Port
Qingdao/Beijing/Shanghai/Shenzhen
Lead Time :
Two weeks after order confirmed



Product Introduction

made in china: Heat Seal Tester seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. Theseal parameters include heat seal temperature, dwell time, and the pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness, and thickness of could show various heat seal properties, which cause obviously different seal technique. Users can obtain standard and accurate heat seal index by DRK133 Heat Seal Tester.



Product features

Micro-computer control; LCD display;

Manu interface, PVC operation board;

P.I.D digital temperature control system:

Underlying double cylinder simultaneous loop;

Two test start mode of manual and foot pedal;

Independent temperature control of the upper and lower heat seal head;

Various heat seal surfaces made to order;

Encapsulate even-temperature heating pipe by aluminum;

Rapid insertion and separation heating pipe plug;

Anti-scald design;

RS232 port;



Product application

It is applicable to determine the seal parameters of plastic film, laminated film, paper-plastic composite film, co-extruded film, aluminum laminated films, aluminum foil, aluminum foil composite membrane, etc. The heat-seal surface is flat. Heat seal width can be designed and customized specially according to customer requirements. It also can test different plastic flexible tube.



Technical standard

ASTM F2029, QB/T 2358(ZBY 28004)YBB 00122003



Product parameter

Items

Parameter

Seal Temperature

Room temperature ~ 300ºC

Temperature Control Accuracy

±0.2ºC

Dwell Time

0.1~999.9s

Dwell Pressure

0.05 MPa~0.7 MPa

Seal Surface

180 mm×10 mm(Customization is available)

Heat Type

Double heat surface

Gas Source Pressure

0.5 MPa~0.7 MPa(Users prepare gas source themselves)

Gas Source Inlet

6 mm polyurethane pipe

Dimensions

400 mm (L)×280 mm (W)×380 mm (H)

Power

AC 220V 50Hz

Net Weight

40 kg



Main fixtures

Standard: Mainframe, operating manual

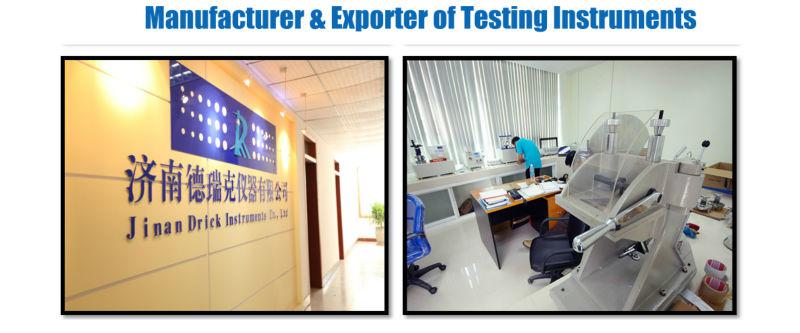

About Drick

We both know quality is life, and quality is worth. So we come, hoping to help you promoting quality control.

Formerly. In 2004, Drick established development direction of testing instrument for papermaking industry.

For 10 years development, now we become a professional supplier of testing instruments for package,papermaking, and printing industries.





    For more information, please feel free to contact us via(tel) 0086-531-66689788.





    Drick  Continuous and professional technical service for customers is the persistent goal of Drick.



                   Drick, Make Your Detection Simpler.



                   Web: www.drick.cn
